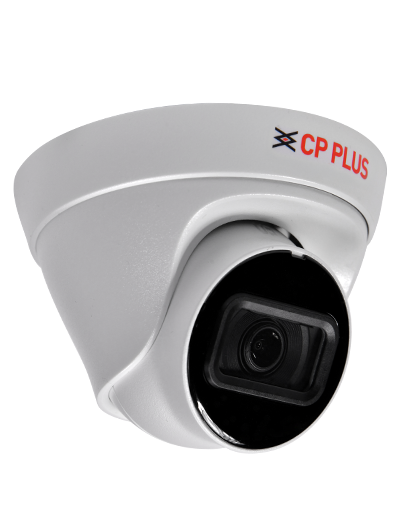

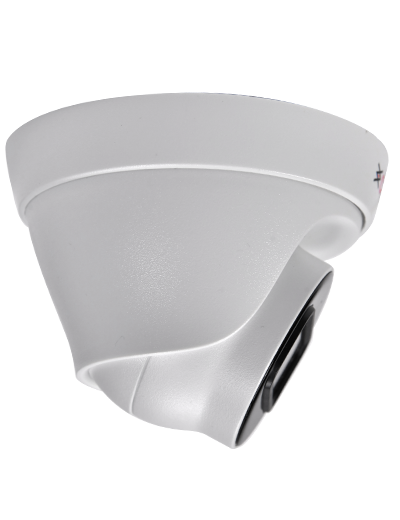

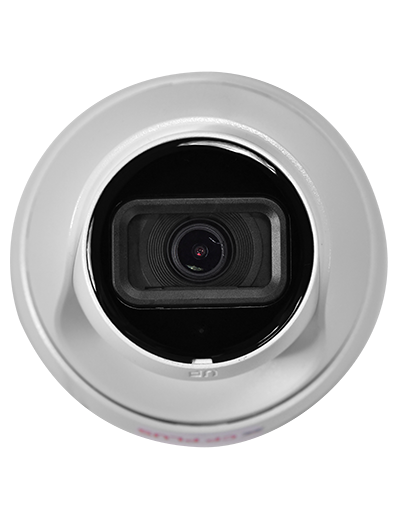

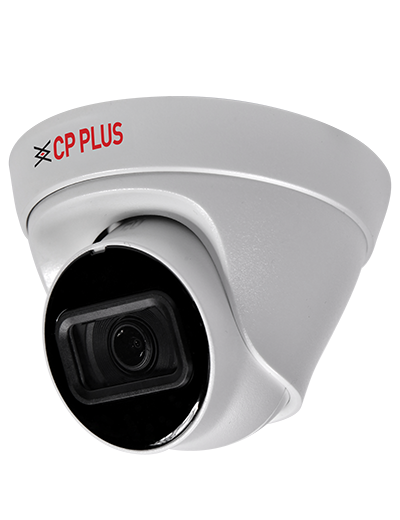

STQC | CP Plus 2MP Network IP Dome Camera (30m, PoE, IP67) | CP-UNC-DA21L3C-Q

STQC | CP Plus 2MP Network IP Dome Camera (30m, PoE, IP67) | CP-UNC-DA21L3C-Q

Rs. 2,900.00
Rs. 2,900.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

CP-UNC-DA21L3C-Q

2MP Network IR Dome Camera - 30Mtr.

  • 1/2.8" 2MP PS CMOS Image Sensor (0.9071 centimeters)
  • Max. 2MP (1920 × 1080)@1–25/30fps
  • Instastream, H.265, H.264, H.264H, H.264B, MJPEG
  • Support Triple stream
  • Support Built-in Mic
  • 3.6mm Lens (2.8mm optional)
  • DWDR, Day/Night (ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking
  • IR Range of 30 Mtr., PoE, IP67

  • Why Choose This Camera?

    Clear Full HD Surveillance
    2MP resolution provides detailed video for everyday security monitoring.

    Reliable Night Vision
    Up to 30m IR range helps maintain visibility even in low-light and nighttime conditions.

    Easy PoE Installation
    Power and network connectivity can be carried through a single Ethernet cable when used with a compatible PoE switch/NVR.

    Outdoor Ready
    IP67 protection helps protect the camera against dust and water, making it suitable for demanding installation environments.

    Professional Dome Design
    The compact dome form factor is ideal for discreet and professional-looking surveillance installations.

    Ideal Applications

    • 🏠 Home Security
    • 🏢 Office Surveillance
    • 🏪 Retail Shops
    • 🏭 Factory & Warehouse
    • 🏫 School & Institution
    • 🏥 Hospital & Clinic
    • 🏬 Commercial Buildings
    • 🚗 Parking & Entry Areas



Image Sensor 1/2.8
Effective Pixels 1920 (H) × 1080 (V)
Minimum Illumination 0.01 lux@F2.0 (Color, 30 IRE), 0.001 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on)
Angle Adjustment Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
Shutter Speed Auto/Manual 1/3 s–1/100,000 s
White Balance Auto, Natural, Street lamp, Outdoor, Manual, Regional custom
RAM 128 MB
ROM 128 MB
DORI Distance Lens 3.6mm: 52.4 m (Detect), 21.0 m (Observe), 10.5 m (Recognize), 5.2 m (Identify) Lens 2.8mm: 45.5 m (Detect), 18.2 m (Observe), 9.1 m (Recognize), 4.6 m (Identify)
Gain Control (AGC) Auto/Manual
Lens Type Fixed-focal
Max. Aperture F2.0
Lens Mount M12
Close Focus Distance 3.6 mm: 0.9 m, 2.8 mm: 0.6 m
Lens 3.6mm (2.8mm optional)
Video Compression Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream)
IR Number 1 IR LED
IR IR Range of 30 Mtr.
Smart IR Support
Day/Night Auto(ICR)/Color/B/W
S/N Ratio >56dB
Angle of view 3.6 mm: H: 86°, V: 47°, D: 103° 2.8 mm: H: 101°, V: 54°, D: 119°
Back Light Compensation BLC/ HLC/ DWDR
Stream Capability Triple stream
Frame Rate Main stream: 2MP (1920 × 1080)@1–25/30fps Sub stream 1: 720p (1280 × 720), D1 (704 × 576)@1–25fps/ (704 × 480)@1–30fps, VGA (640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288) @1-25fps Sub stream 2: D1 (704 × 576)@1–25fps/ (704 × 480)@1–30fps, VGA (640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288) @1-25fps
Video Format PAL/NTSC
Privacy Mask 4 areas
Resolution 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
ROI Support (4 areas)
OSD Camera title, Date & Time
Audio Built-in Mic
Audio Compression G.711a, G.711Mu, PCM, G.726, AAC
Bit Rate H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps
Bit Rate Control CBR/VBR
Human & Motor Vehicle Detection Support the classification and accurate detection of human & Motor Vehicle
Human Body Detection Support the classification and accurate detection of human & Motor Vehicle
Protocol SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast
SDK and API Support
Iris Control Fixed
Ethernet RJ-45 (10/100 Base-T)
Smart search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Alarm Event Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, IMD (Intelligent motion detection), Security exception
Cyber Security AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot
Mirror Function Support
IR Control Auto, Manual
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2MP resolution and lower)
Certificates ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report
Power Source 12 VDC/PoE (802.3af)
Power Consumption Basic: 1.3 W (12 VDC), 1.6 W (PoE) Max. (H.265 + intelligence on + WDR+ IR intensity): 3.3 W (12 VDC), 4.2 W (PoE)
User/Host 6 (Total bandwidth: 36 M)
Weatherproof Standard IP67
Browser IE, Chrome, Firefox
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95% (RH), non-condensing
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95%(RH), non-condensing
Dimensions 85.5 mm × 109 mm
Casing Metal + Plastic
Weight 250g
